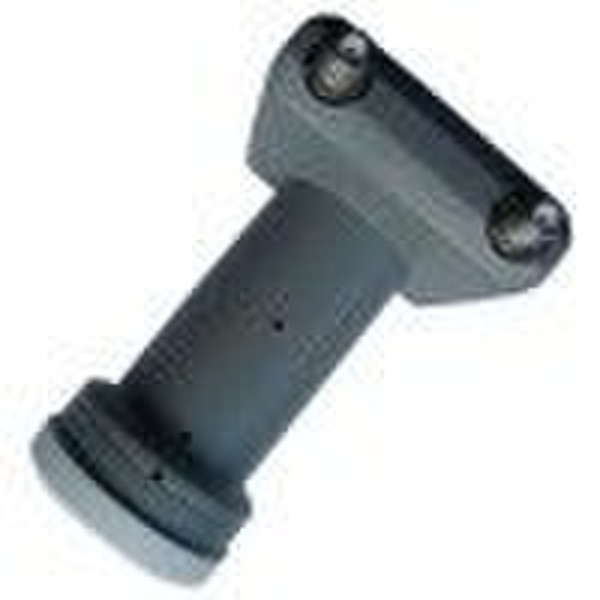

LNB

INPUT FREQUENCY: 10.7 12.75 GHzL.O. FREQUENCY: 9.75/10.6GH, 9.75/10.75 MHzSTABILITY ±2.5 MHz at -40 - +60 L.O. PHASE NOISE-53/ -70 dBc/Hz@1KHz -76/ -90 dBc/Hz@10KHz -92/ -110 dBc/Hz@100KHzOUTPUT FREQUENCY 950-2150 MHzCONVERSION GAIN 65 dB (TYP)GAIN FLATNESS ±1dB/36 MHzNOISE FIGURE: 0.3dBINPUT V.S.W.R 2.3:1OUTPUT V.S.W.R 2.3:1LOCAL LEAKAGE AT INPUT: -45 dBmIMAGE REJECTION 45 dBOUTPUT POWER + 0dBm (AT 1 dB COMPRESSION)CROSS POLAR ISOLATION 23dB MINDC SUPPLY VOLTAGE V: 12-14.5VH: 16-18VSUPPLY CURRENT: 120mA(TYP), 150mA(Max))OPERATING TEMPERATURE: -40 +60 RELATIVE HUMIDITY: 0% 95%LOW/HIGH BANS SWITCHING Low Band: 0 kHzHigh Band
