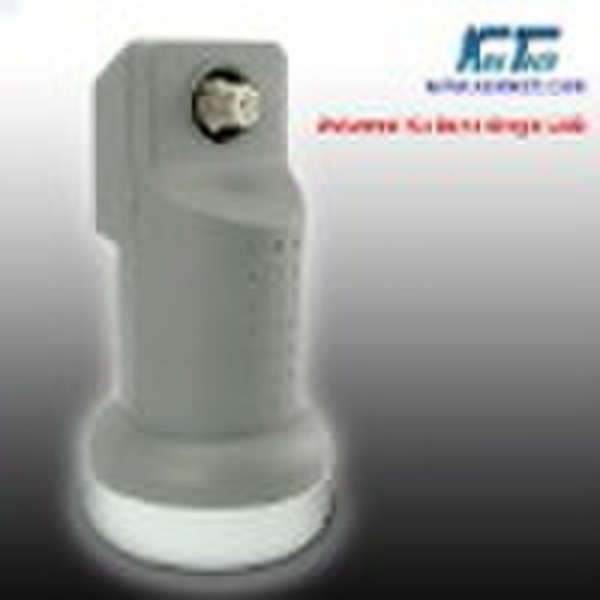

KU Band LNB
original price: 1,60 USD
Lilian liang
Contact person
Basic Information
KU Band LNB Property*Inputfrequency12.25-12.75GHz *LOFrequency11300MHz *Ku-BandDualpolarizationandsingleoutput *Polarityswitchablethrough13/18V *Directreceiverconnection Descriptspecification ImageRejection40 dB (Min.)F/D Ratio0.6Cross Pol. discrimination20dB(Min)InputReflector TypeOffsetGainFlatness4.5dB£¨Over Band £©Noise Figure0.7dB (Typ.), 1.0dB (Max.)L.O. Frequency11.30GHzConversion Gain60dB(TYP)@25¡æ56dB(min)Output Frequency Range950 - 1450MHzGain Variation:1dB/54MHzL.O. Stability1.0MHz@25¡æ ¡À3.0MHz@-40 ¡æto +60¡æL.O. Phase Noise-53dBc/Hz (1kHz Offset)-76dBc/Hz (10kHz Offset) -92dBc/Hz (100kHz Offset) Return Loss8.0dB(2.3:1)Output Power0dB (Min.)Polarization SelectionV : 11 14V DCH : 16 19V DCOutput Connector75¦¸F type femaleD.C. Current Consumption120mA(TYP) 150mA(Max)Operating Temperature-30 ¡æ to +60 ¡æ
Delivery terms and packaging
Packaging Detail: color box with KEXTECH brand Delivery Detail: 15-20 days after deposit
Port: Shenzhen
Payment term
Telegraphic transfer
Western Union
-
Payment Methods
We accept:
